• Weaving type: plain, twill, dutch, crimped
• Mesh count: 1-100 mesh, 50/500 mesh
• Commonly referred: SS430, UNS S43000, SUS430
• Stock Size：


  Mesh Size	Wire Diameter
  2.2mesh	1mm
  6mesh	0.56mm
  10mesh	0.63mm
  10mesh	0.7mm
  14mesh	0.28mm
  14mesh	0.6mm
  16mesh	0.4mm
  16mesh	0.5mm
  17mesh	0.5mm
  24mesh	0.3mm
  24mesh	0.3mm
  25mesh	0.31mm
  30mesh	0.25mm
  30mesh	0.3mm
  30mesh	0.33mm
  35mesh	0.19mm
  40mesh	0.21mm
  40mesh	0.23mm
  50mesh	0.15×0.18mm
  50mesh	0.19mm
  75mesh	0.14mm
  80mesh	0.15mm
  100mesh	0.1mm
  100mesh	0.1mm
  140mesh	0.06mm

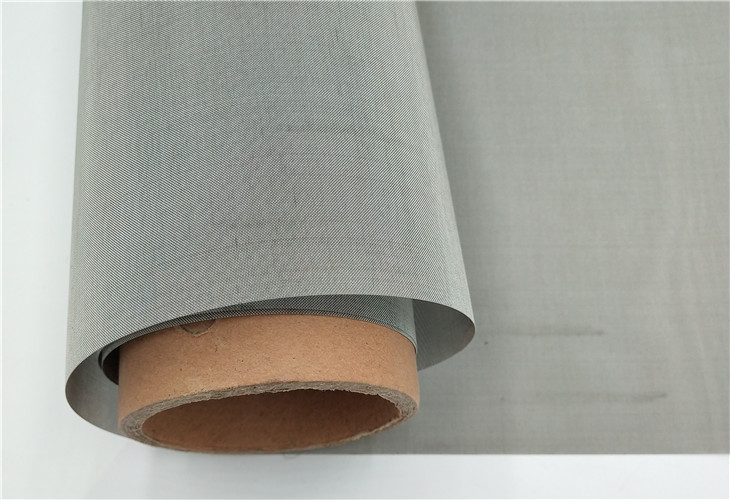

• Ferritic stainless steel wire mesh.
• Magnetic in all conditions.
• Max operating temperature of ~1500°F.
• Resists oxidation at 1600°F temperatures, though strength loss occurs above 1300°F.
• Can be cut, formed, and welded.

430 stainless steel wire cloth is principally used with food products, chemicals, and appliances given its previously mentioned resistance to nitric and organic acids. 430 has similar resistance to crevice corrosion and pitting as 304, thus 304 is selected over 430 where improved welding and cold forming ability is required. When improved welding, cold forming, and significantly better corrosion resistance is required, 316 is selected over 430. In a cost critical setting that can accept lower corrosion resistance, 410L may be chosen over 430.
