| Chemical Composition（%） | |||||||
| P | Cu | Sn | Pb | Fe | Zn | Other each | Other Total |
| 0.03-0.35 | balance | 4.2-5.8 | 0-0.05 | 0-0.1 | 0-0.3 | 0-0.5 | 0-0.5 |
- Weaving type：plain，twill
- Mesh count：1 to 500 mesh
Copper Series Mesh

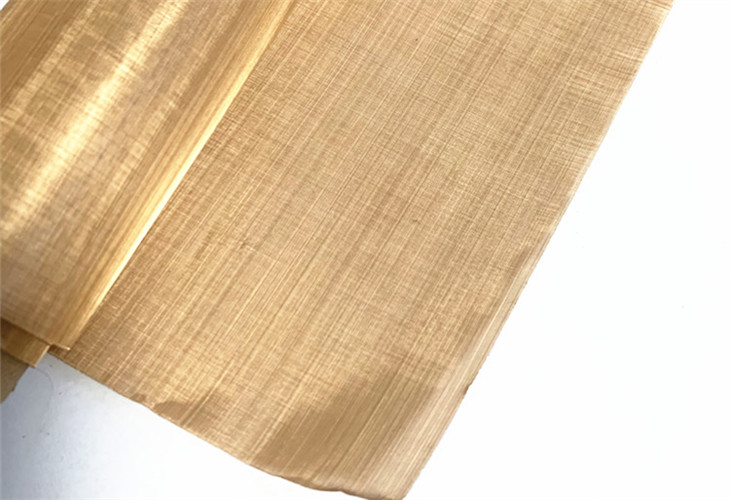

Phosphor bronze 5% A wire mesh (C51000 phos bronze wire mesh) is a bronze alloy nominally comprised of 94.8% copper, 5% tin, and 0.2% phosphorus, with small additions of zinc (0.15%), iron (0.05%), and lead (0.025%). The 5% tin helps to increase its strength and resistance to corrosion, and 0.2% phosphorus helps to increase its stiffness and wear resistance. As such, phosphor bronze is used as opposed to 90-10 commercial bronze when weaving fine bronze meshes with small wire diameters (i.e. 200 mesh .0021″ dia phos bronze). C510 phos bronze wire mesh possesses a superior combination of strength and ductility compared to other brass (H65 brass) and bronze (90-10 commercial bronze) wire cloth materials. When compared to C519 phos bronze and C51980 phos bronze, C510 phos bronze is a weaker material.
| Chemical Composition（%） | |||||||
| P | Cu | Sn | Pb | Fe | Zn | Other each | Other Total |
| 0.03-0.35 | balance | 4.2-5.8 | 0-0.05 | 0-0.1 | 0-0.3 | 0-0.5 | 0-0.5 |
Some characteristics of phosphor bronze 5% A wire cloth which dictate its use are:
Phosphor bronze 5% A wire cloth is principally used in liquid filtration and particle separation, medical device, and architectural applications. Additional industries and applications which commonly use C510 phos bronze wire cloth include:
