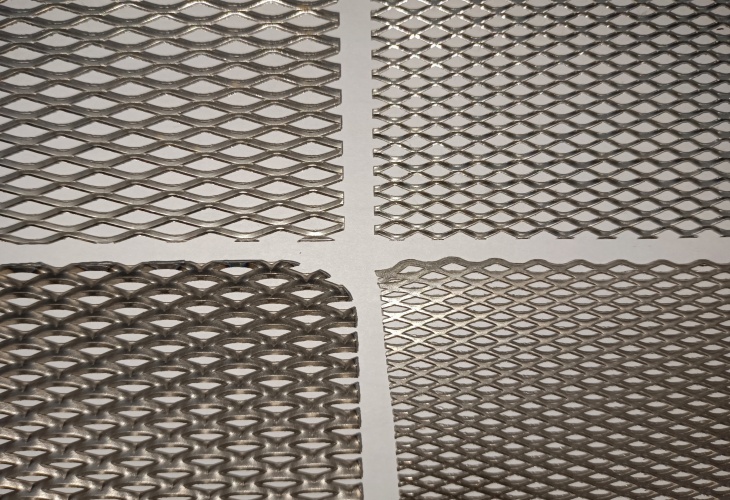

Nickel expanded mesh

Nickel expanded mesh is a type of metal mesh made from nickel or nickel alloys. It is created by expanding a sheet of nickel metal through a mechanical process, resulting in a mesh with a series of uniform, diamond-shaped openings. This type of mesh is commonly used for applications that require both strength and corrosion resistance, as nickel has excellent resistance to rust and oxidation.

Detailed Specifications

Material: N4(Ni201）N6（Ni200）
Hole size: 0.1mm-100mm
Thickness: 0.01-5mm

Chemical Composition（%）
	Ni	Mn	C	Cu	Si	Fe	S
N4(NI201)	Balance	0-0.002	0-0.01	0-0.01	0-0.03	0-0.04	——
N6(NI200)	Balance	0-0.05	0-0.1	0-0.03	0-0.1	0-0.1	0-0.005

Stock Size：

*Aperture（LWDSWD）**	Thick
0.4*0.7mm	0.12mm
0.6*1mm	0.12mm
0.6×1.4	0.32mm
0.6*2.6mm	0.5mm
0.7*1mm	0.12mm
0.7*1.5mm	0.12mm
1*2mm	0.5mm
1*2mm	0.32mm
1x2mm	0.12mm
1.25*2.5mm	0.3mm
1.25*2.5mm	0.5mm
2*5mm	1mm
2.8*5mm	0.29mm
3*5mm	0.8-1mm
3*5mm	0.5 mm
5*10mm	1.5mm
6*12mm	1mm

Features

Stable working ability under high current density & Voltage
High electrolysis efficiency
Stable electrolysis ability
High anti-corrosion property
The matrix can be recycled and recoated with MMO for reuse
Long working life etc.

Applications

Water ionizer
Alkaline & Acidic water production
Deionized water in cosmetic, disinfection, clean etc.
For sodium hypochlorite disinfecting machine, titanium electrode for spot ozonolysis, titanium electrode for sewage treatment and cathodic protection.
