• Weaving type：plain，twill
• Mesh count：1 to 200 mesh
• Stock Size：


  Mesh Size	Wire Diameter
  10mesh	0.5mm
  12mesh	0.46mm
  12mesh	0.53mm
  12mesh	0.63mm
  14mesh	0.4mm
  16mesh	0.23mm
  18mesh	0.25mm
  20mesh	0.36mm
  20mesh	0.4mm
  22mesh	0.25mm
  24mesh	0.4×0.36mm
  26mesh	0.17mm
  30mesh	0.25mm
  30mesh	0.25mm
  40mesh	0.15mm
  40mesh	0.25mm
  42mesh	0.12×0.15mm
  42mesh	0.15mm
  42mesh	0.12mm
  48mesh	0.125mm
  50mesh	0.22mm
  60mesh	0.1mm
  80mesh	0.12mm
  100mesh	0.12mm
  100mesh	0.11mm
  100mesh	0.1mm
  150mesh	0.08mm

• Wrought aluminium-magnesium family (5000 series) alloy.
• Excellent corrosion resistance in broad range of extremely corrosive environments.
• Quite resistant to marine environments and salt water corrosion.
• Very durable; highest strength of all non-heat-treatable aluminum grades.
• Cannot be heat treated; strength can be increased via cold working.
• Easily cut, formed, and welded.

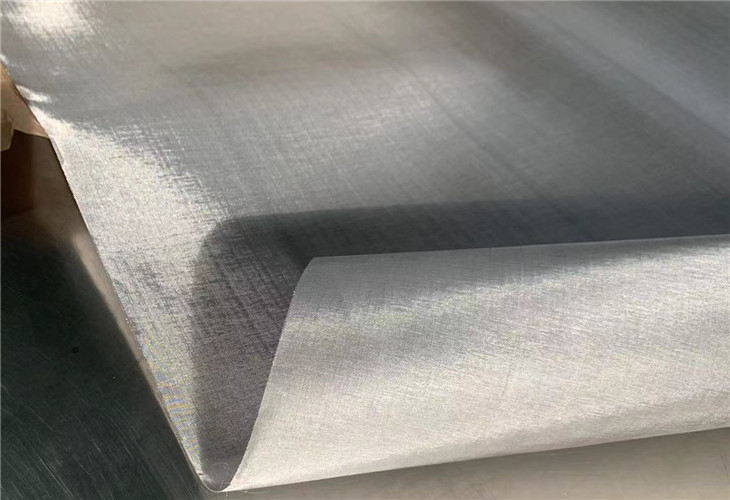

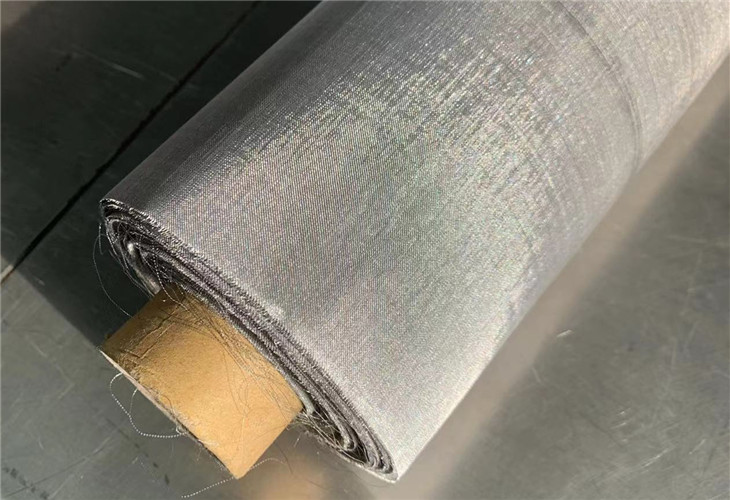

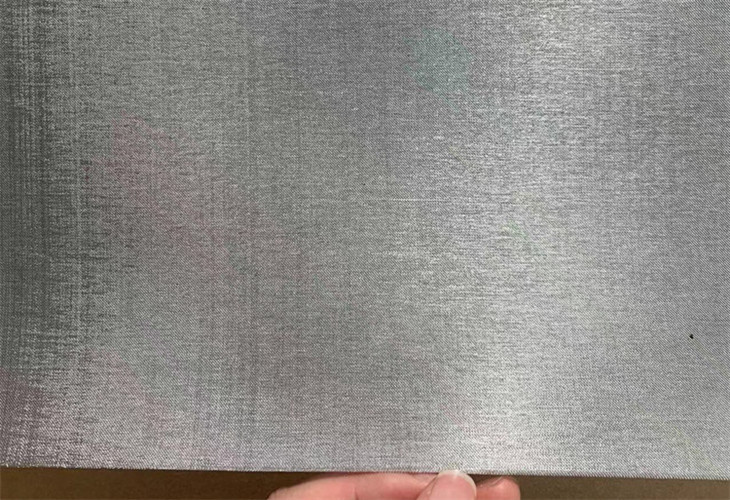

Aluminium 5056 wire mesh is one of the most used aluminum wire mesh alloys, and is principally used in marine, chemical, and general industrial applications given its durability, formability, and salt water corrosion resistance properties. Additional industries and applications which commonly use aluminum alloy 5056 wire cloth include:

• Aerospace
• Appliances
• Architectural
• Heat Exchangers
• Oil Field & Refinery
• Wire Screens
